Scrubmaster B400 RH

Vacuum sweeper and scrubber-drier
combi machine with high dump

Environment

For years, it has been a must for us to manufacture in an environmentally friendly manner. Consumption of materials and energy are the most important issues we consider when improving our environmental impact. Hako uses environmental audits; the formulation of binding environmental guidelines; and environmental management to create the conditions for continuous optimization.

Hako’s Integrated Environmental Cleaning (IEC) System, comprises of Hako Anti-bacterial tanks (certified to ISO22196) increasing hygiene and safety standards, daytime cleaning technology reducing evening energy consumption, certified and patented aqua control.

The best option for large areas

The Scrubmaster B400 RH with a high dump is the perfect choice for environments where plenty of coarse dirt regularly accumulates, e.g. in production or exhibition halls. Equipped with a 150-liter dirt hopper, the vacuum sweeper and scrubber-drier combi machine can cope with large amounts of coarse dirt. Larger pieces of debris can be picked up by hand and thrown into the dirt hopper manually through the integrated coarse dirt flap.

  • Automated high dump
  • Coarse dirt flap to throw in litter by hand
  • 150-liter dirt hopper
  • Dust Stop for low-dust sweeping

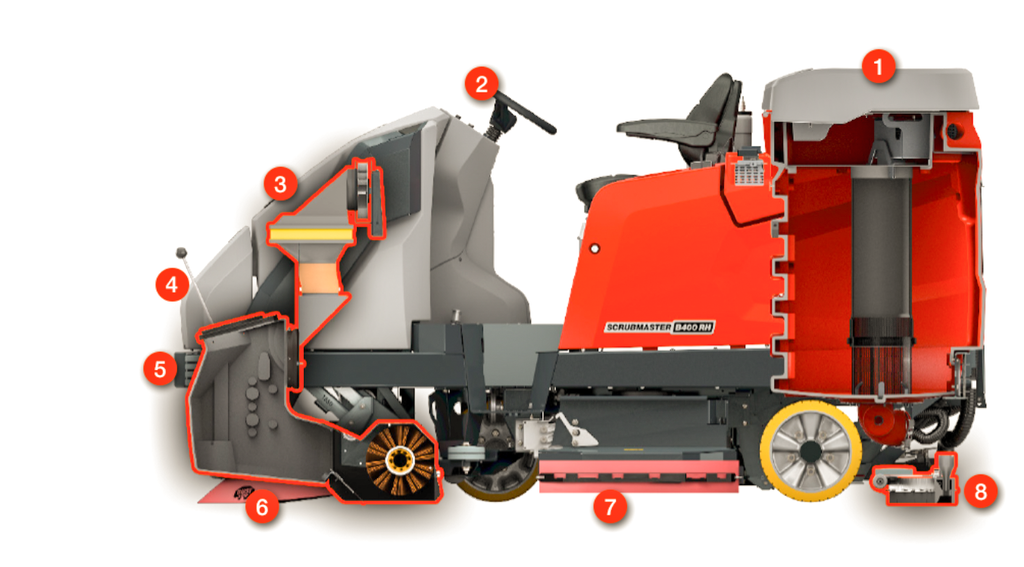

Technical perfection

1 400-liter solution and recovery tank
2  Ergonomic workplace and intuitive operation
3 150-liter dirt hopper
4  Pre-sweep unit
5  Collision-proof frame
6  Side broom with DustStop (option)
7  3-disc-brush unit, 123 or 155 cm working width
8  Fold-up squeegee facilitates daily maintenance

B400_RM_Schnitt



Automated, practical, efficient!

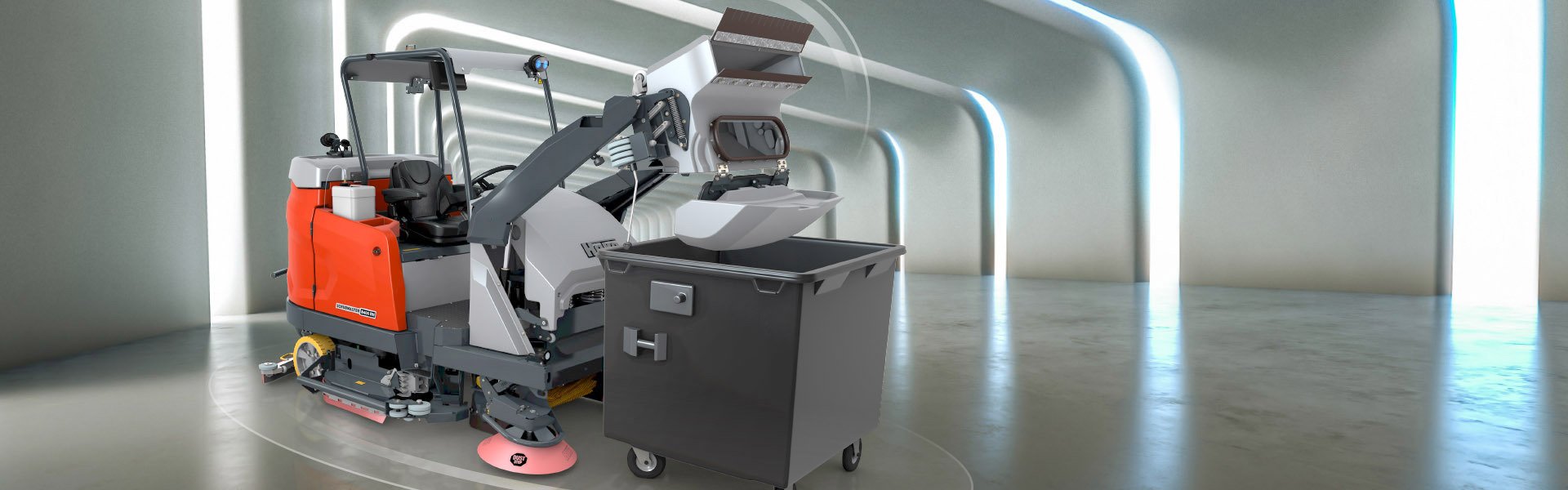

Dumping the dirt hopper contents directly into waste containers at a height of up to 165 cm (high dump) has two major benefits: It saves time thanks to the automated disposal of large amounts of dirt, and it prevents the operator from coming into contact with the contents.

Scrubmaster-B400-RH_Hochentleerung (1)



Less dirt, less dust

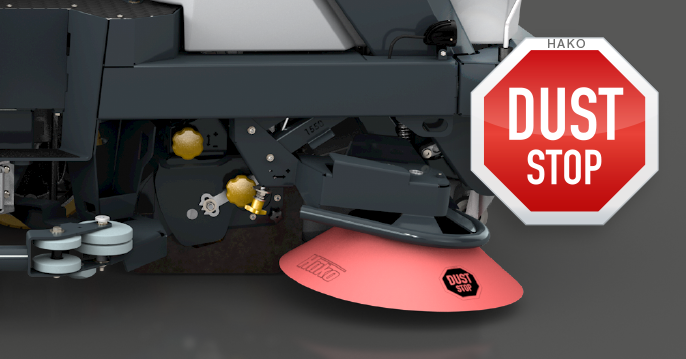

Yet another benefit: Hako’s innovative side broom jacket Dust Stop (option) reduces the development of dust and fine particulates during dry sweeping by up to 90% when compared to working with conventional side brooms, which protects both the immediate environment and, for instance, goods stored on shelves against rising dust. In addition, the negative impact of fine particulates on the operator’s health is reduced significantly.

B400RH_det_Dust_Stop_web

Variants

Three variants – countless possibilities

The Scrubmaster B400 R Series comprises three variants: the vacuum sweeper and scrubber-drier combi machine Scrubmaster B400 RH with a high dump, the vacuum sweeper and scrubber-drier combi machine Scrubmaster B400 RM for manual emptying, and the scrubber-drier Scrubmaster B400 R.

Capture3

  • 3-disc-brush units with working widths of 123 cm or 155 cm
  • X-AC front and rear drive (optional) for improved traction and a powerful performance on both level surfaces and inclines of up to 15% in cleaning mode
  • Low-dust sweeping and reduced fine particulate emissions with DustStop (variants Scrubmaster B400 RH and B400 RM)
  • Maximized battery capacity provided by the optional battery changing system
  • AGR-certified, ergonomic workplace with a height-adjustable steering wheel ensures back-friendly working
  • Individually configurable with numerous optional extras and tool

Technical Data

Scrubmaster B 400 RH at a glance

Scrubmaster B400 R   B400 R/RM/RH 1230 B400 R/RM/RH 1550
Working width scrubbing cm 123 155
Squeegee width cm 136 166
Theoretical area performance m²/h 11000 14000
Max. climbing capacity/
in cleaning mode without/with X-AC
% 6 / 15
6 / 15
Working speed km/h 9 9
Brush system/number of brushes   disc/3 disc/3
Brush contact pressure kg 55-75-95 80-110-140
Solution and recovery tank capacity l 400 400
Dirt hopper capacity (gross)*
Take-it-Easy high dump**
l 2 x 44
150
2 x 44
150
Nominal voltage Volt 36 36
Total output kW 14.7 16
Battery capacity max. Ah 540/810 540/810
Length with squeegee R/RM/RH cm 202 / 281 / 281 202 / 281 / 281
Width without/with the squeegee cm 130 / 136 160 / 166
Height without/with overhead guard cm 150 / 212 150 / 212
Weight, ready to use, without driver kg 2110 / 2260 / 2420 2130 / 2280 / 2440
Noise level at the driver’s ear R/RM/RH dB(A) 68 / 74 / 74 68 / 74 / 74
